TGL Bearing product range

At that time the Automotive Industry was in a tremendous development and growth in Germany and all over Europe. TIGRIL brake liners were OE most prominently with MAN trucks and TIGRIL quality had approval from many well known European truck manufacturers.

The experienced TIGRIL team constantly works on improving and expanding the product lines as well as intensifying its worldwide sales activities in order to gain trust of customers from around the globe.

Quality Spare Parts

Quality Drives Mobility

Backed by some of the biggest names in the industry refoopen platform.

High Precision Maximum Quality

Backed by some of the biggest names in the industry refoopen platform.

Product Range includes

TGL

TGL

TGL

TGL

TGL

TGL

TGL

TGL

TGL

TGL

TGL

Show / Hide

Product Range fit for

Index	TGL No:	Reference No:	ID [mm]	OD [mm]	Thickness [mm]
1	TG3-0216-1	30216A	80	140	28.25
2	TG3-0217-1	30217A	85	150	30.50
3	TG3-0220-1	30220A	100	180	37
4	TG3-0221-1	30221A	105	190	39
5	TG3-0309-1	30309A	45	100	27.25
6	TG3-0312-1	30312	60	130	33.50
7	TG3-0314-1	30314A	70	150	38
8	TG3-0315-1	30315A	75	160	40
9	TG3-0316-1	30316A	80	170	42.50
10	TG3-1312-1	31312A	60	130	33.50
11	TG3-1313-1	31313A	65	140	36
12	TG3-2011-24	32011X	55	90	23
13	TG3-2018-241	32018XA	90	140	32
14	TG3-2019-241	32019XA	95	145	32
15	TG3-2020-24	32020X	100	150	32
16	TG3-2021-24	32021X	105	160	35
17	TG3-2022-24	32022X	110	170	38
18	TG3-2024-24	32024X	120	180	38

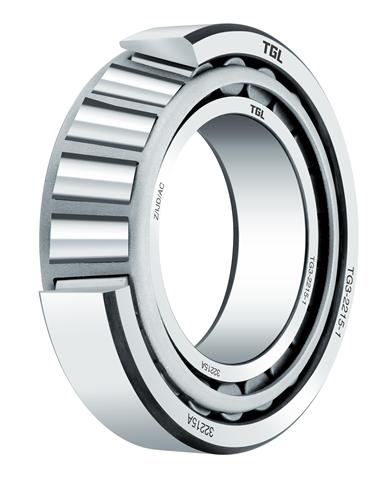

19	TG3-2215-1	32215A	75	130	33.25
20	TG3-2216-1	32216A	80	140	35.25
21	TG3-2217-1	32217A	85	150	38.50
22	TG3-2218-1	32218A	90	160	42.50
23	TG3-2219-1	32219A	95	170	45.50
24	TG3-2220-1	32220A	100	180	49
25	TG3-2221-1	32221A	105	190	53
26	TG3-2222-1	32222A	110	200	56
27	TG3-2309-1	32309A	45	100	38.25
28	TG3-2310-1	32310A	50	110	42.25
29	TG3-2311-1	32311A	55	120	45.50
30	TG3-2311-2	32311B	55	120	45.50
31	TG3-2312-1	32312A	60	130	48.50
32	TG3-2313-1	32313A	65	140	51
33	TG3-2313-21	32313BA	65	140	51

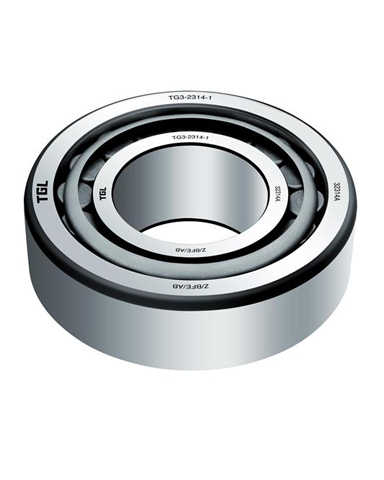

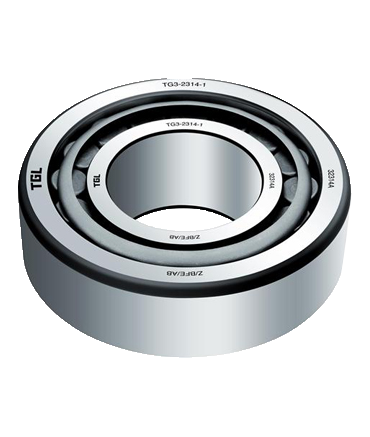

34	TG3-2314-1	32314A	70	150	54
35	TG3-2314-21	32314BA	70	150	54
36	TG3-3015-0	33015	75	115	31
37	TG3-3018-0	33018	90	140	39

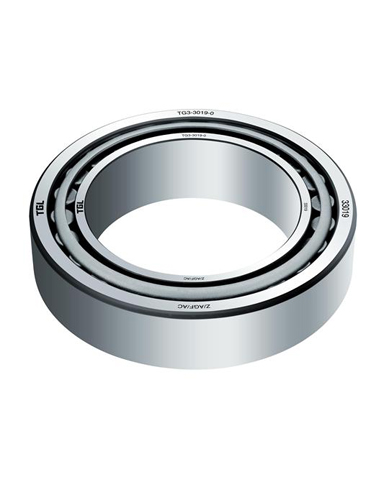

38	TG3-3019-0	33019	95	145	39
39	TG3-3020-0	33020	100	150	39
40	TG3-3021-0	33021	105	160	43
41	TG3-3022-0	33022	110	170	47
42	TG3-3113-0	33113	65	110	34
43	TG3-3115-0	33115	75	125	37
44	TG3-3116-0	33116	80	130	37
45	TG3-3117-0	33117	85	140	41
46	TG3-3118-0	33118	90	150	45
47	TG3-3208-0	33208	40	80	32
48	TG3-3210-0	33210	50	90	32
49	TG3-3211-0	33211	55	100	35
50	TG3-3213-0	33213	65	120	41
51	TG3-3214-0	33214	70	125	41
52	TG3-3215-0	33215	75	130	41
53	TG3-3217-0	33217	85	150	49
54	TG5-12533-0	512533	30	60	26
55	TG5-22380-0	522380	51	100	35

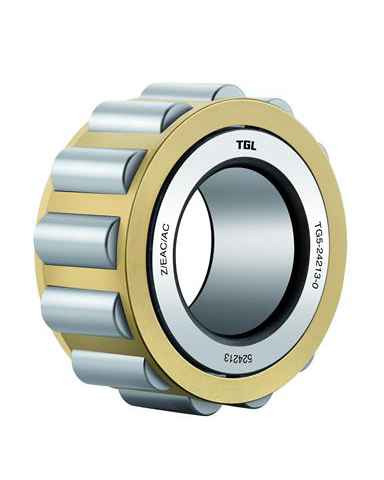

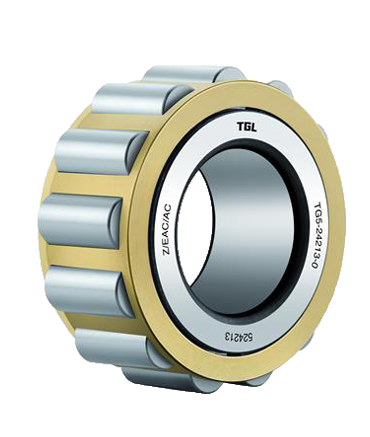

56	TG5-24213-0	524213	85	157/150	28
57	TG5-24599-0	524599	55	102.70	52.80
58	TG5-24850-0	524850	80	130	35
59	TG5-24851-1	524851A	90	145	35
60	TG5-28946-0	528946	105	170	38
61	TG5-28983-2	528983B	70	130	57
62	TG5-29084-4	529084D	80	145/140	25.75
63	TG5-29257-1	529257A	60	113	52.05
64	TG5-29065-0	529065	88	140	32
65	TG5-34565-0	534565	70	130	57
66	TG5-66074-8AIE	566074.H195	69.80 / 70	125	114
67	TG5-66193-8AIE	566193.H195	81.80 / 82	138	130
68	TG5-66283-8AIE	566283.H195	99.80 / 100	148	135
69	TG5-66425-8AIE	566425.H195	93.80 / 94	148	135
70	TG5-66426-8AIE	566426.H195	68 / 68.20	125	115
71	TG5-66427-8AIE	566427.H195	57.80 / 58	110	115
72	TG5-66834-8AIE	566834.H195	69.80 / 70	124.70 / 119.70	110.05
73	TG5-71762-8AIE	571762.H195	68 / 68.20	132 / 127.30	115
74	TG5-72813-1	572813A	70	150	64
75	TG5-80616-0	580616	75	140	34.25
76	TG5-81079-5	581079D	68 / 68.20	125	115
77	TG8-00792-3	800792C	93.80 / 94	148	135.40
78	TG8-01464-0	801464	60	130 / 137.30	33.25
79	TG8-03194-1	803194A	78	130	90
80	TG8-03750-2	803750B	105	160	140
81	TG8-04162-1	804162A	110	170	146
82	TG8-05003-1-8AIE	805003A-H195	82	140	115
83	TG2-04043/204010	HM204043/HM204010	39.987	90.975	32
84	TG2-12049/212010	HM212049/HM212010	66.675	122.238	38.10
85	TG2-18248/218210	HM218248.HM218210	89.974	146.975	40
86	TG2-20149/220110	HM220149/HM220110	99.975	156.975	42
87	TG5-18445/518410	HM518445/HM518410	88.90	152.40	39.688

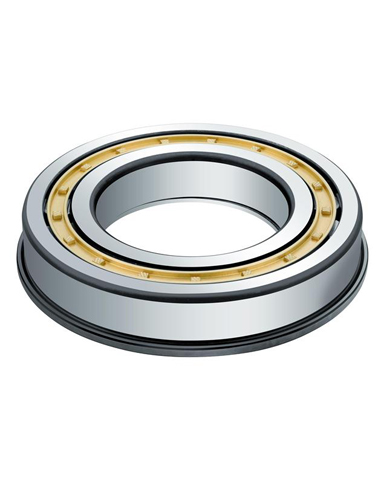

88	TGN-314EN	NUP314EN.M1.C3	70	150	35
